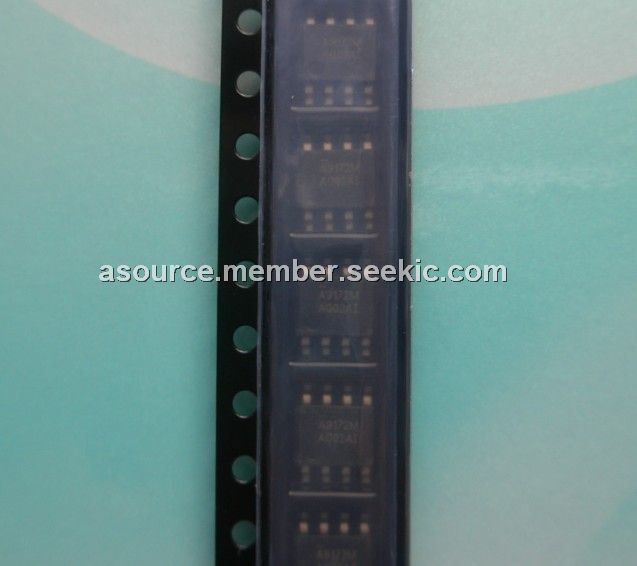

Product Summary

The AME9172M-AZA is a voltage regulator which could convert the input voltage ranging from 1.2V to 3.0V to an output voltage that user settled. The AME9172M-AZA can provide 2.4A sourcing or sinking current. The AME9172M-AZA used in conjunction with series termination resistors, provides an excellent voltage source for active termination schemes of high speed transmission lines as those seen in high speed memory buses and distributed backplane designs. The applications of it are DDR Memory Termination Supply, Active Termination Buses, Desktop PC, Supply Splitters, Set Top Box/IPC.

Parametrics

AME9172M-AZA absolute maximum ratings: (1)Input Voltage. VIN to GND:6V; (2)ESD Classification:B.

Features

AME9172M-AZA features: (1)Support Both DDR 2 (0.9VTT) & DDR 3 (0.75VTT) Requirements; (2)Capable of Sourcing and Sinking 2.4A Current; (3)Current-limiting Protection; (4)Thermal Protection; (5)Soft Start; (6)Integrated Power MOSFETs; (7)Generates Termination Voltages for SSTL-2; (8)High Accuracy Output Voltage at Full-Load; (9)Adjustable VOUT by External Resistors; (10)Minimum External Components; (11)Shutdown for Standby or Suspend Mode Operation with High-impedance Output.

Diagrams

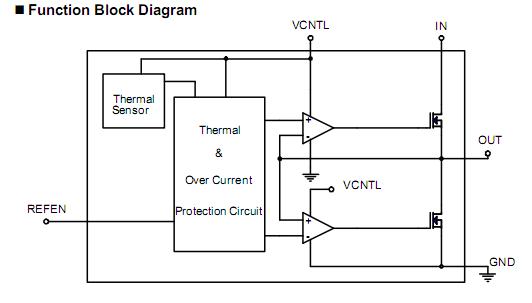

AME9172M-AZA block diagram
