Product Summary

The AO4427 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications. The device is ESD protected. Standard Product AO4427 is Pb-free (meets ROHS & Sony 259 specifications). AO4427 is a Green Product ordering option. AO4427 and AO4427 are electrically identical.

Parametrics

Absolute maximum ratings:(1)Drain-Source Voltage, VDS: -30V; (2)Gate-Source Voltage, VGS: ±25V; (3)Continuous Drain Current A, TA=25°C, ID: -12.5A; (4)Continuous Drain Current A, TA=70°C, ID: -10.5A; (5)Pulsed Drain Current, IDM: -60A; (6)Power Dissipation, TA=25°C, PD: 3W; (7)Power Dissipation, TA=70°C, PD: 2.1W; (8)Junction and Storage Temperature Range, TJ, TSTG: -55 to 150°C.

Features

Features: (1)VDS (V) = -30V; (2)ID = -12.5 A (VGS = -20V); (3)RDS(ON) < 12mΩ (VGS = -20V); (4)RDS(ON) < 14mΩ (VGS = -10V); (5)ESD Rating: 2KV HBM.

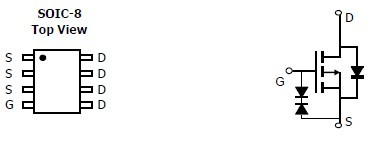

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

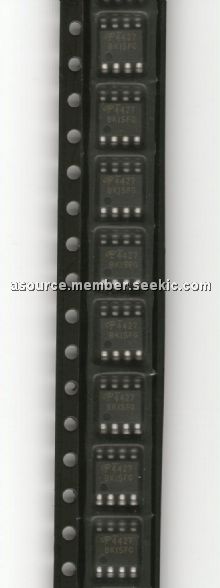

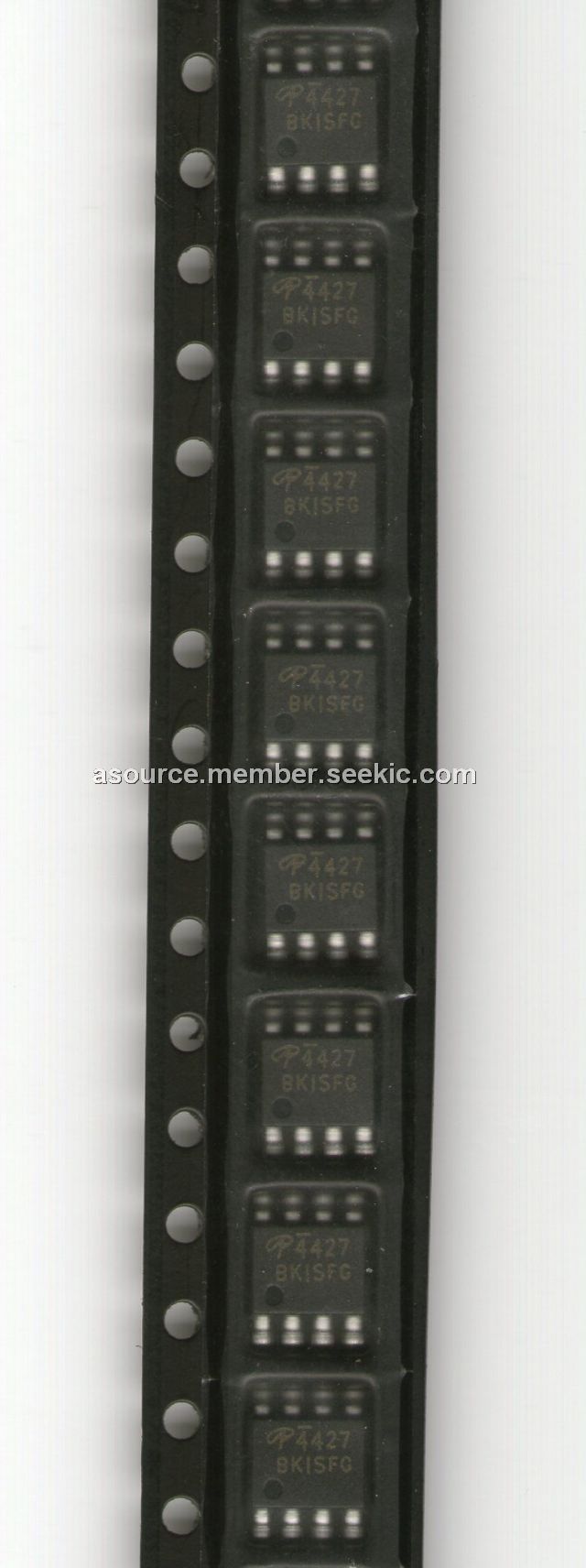

AO4427
AO4427

MOSFET P-CH -30V -12.5A 8-SOIC
Data Sheet
Negotiable
