Product Summary

The RJK0394DPA is a Silicon N Channel Power MOS FET.

Parametrics

RJK0394DPA absolute maximum ratings: (1)Drain to source breakdown voltage:30V; (2)Gate to source leak current:± 0.1μA; (3)Zero gate voltage drain current:1μA; (4)Gate to source cutoff voltage:1.2 to 2.5V; (5)Forward transfer admittance:65S; (6)Input capacitance:1110pF; (7)Output capacitance:160pF; (8)Reverse transfer capacitance:80pF; (9)Gate Resistance:2.5Ω; (10)Total gate charge:7.4nC; (11)Gate to source charge:3.2nC; (12)Gate to drain charge:1.9nC; (13)Turn-on delay time:8.8ns; (14)Rise time:4ns; (15)Turn-off delay time:36ns; (16)Fall time:5.1ns.

Features

RJK0394DPA features: (1)High speed switching; (2)Capable of 4.5 V gate drive; (3)Low drive current; (4)High density mounting; (5)Low on-resistance RDS(on) = 7.8 mΩ typ. (at VGS = 10 V); (6)Pb-free ; (7)Halogen-free.

Diagrams

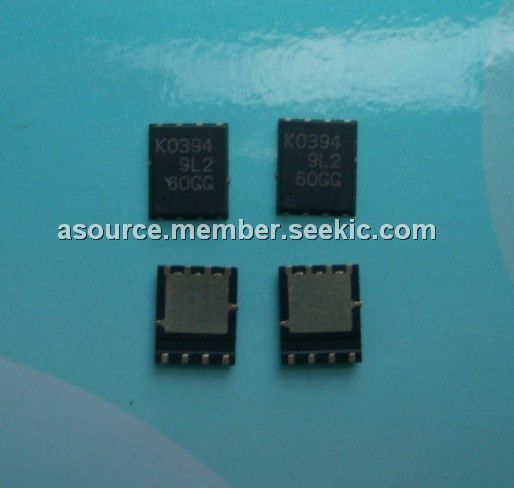

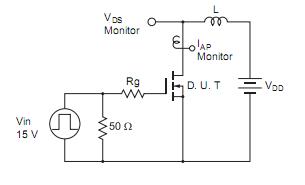

RJK0394DPA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RJK0394DPA-00#J53
RJK0394DPA-00#J53


MOSFET N-CH 30V 35A W-PAK

Data Sheet

0-1: $0.53
1-10: $0.46
10-25: $0.41
25-100: $0.36
100-250: $0.31
250-500: $0.26
500-1000: $0.21
RJK0394DPA-00#J5A
RJK0394DPA-00#J5A


MOSFET N-CH 30V 35A 2WPACK

Data Sheet

0-1: $0.64
1-10: $0.57
10-25: $0.50
25-100: $0.45
100-250: $0.39
250-500: $0.35
500-1000: $0.28
