Product Summary
The AP1534SG-13 is a pwm control 2A step-down converter. The AP1534SG-13 consists of step-down switching regulator with PWM control. The applications of the AP1534SG-13 are PC Motherboard, LCD Monitor, Graphic Card, DVD-Video Player, Telecom Equipment, ADSL Modem, Printer and other Peripheral Equipment, Microprocessor Core Supply.
Parametrics
AP1534SG-13 absolute maximum ratings: (1)Human Body Model ESD Protection:4.5KV ; (2)Machine Model ESD Protection:150V ; (3)VCC Pin Voltage:VSS - 0.3 to VSS + 20V ; (4)Feedback Pin Voltage:VSS - 0.3v to VCC ; (5)EN Pin Voltage:VSS - 0.3V to VIN; (6)Switch Pin Voltage:VSS - 0.3V to VIN; (7)Power Dissipation:Internally limited; (8)Operating Junction Temperature Range:-20 to +125℃; (9)Storage Temperature Range:-40 to +150℃.
Features
AP1534SG-13 features: (1)Input voltage: 4.4V to 18V; (2)Output voltage: 0.8V to VCC.; (3)Duty ratio: 0% to 99% PWM control; (4)Oscillation frequency: 300KHz typ.; (5)Current limit, Enable function; (6)Thermal Shutdown function; (7)Built-in internal SW P-channel MOS; (8)SOP-8L: Available in “Green” Molding Compound(no Br, Sb); (9)Lead Free Finish/RoHS Compliant.

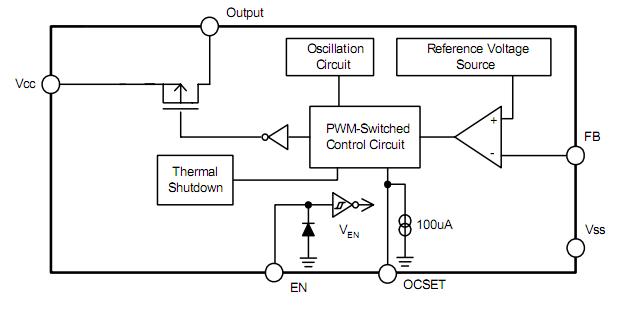

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AP1534SG-13 |
Diodes Inc. |
Switching Converters, Regulators & Controllers PWM CONTROL STEPDOWN CONVERTER |
Data Sheet |
|
|
||||||||||||
