Product Summary

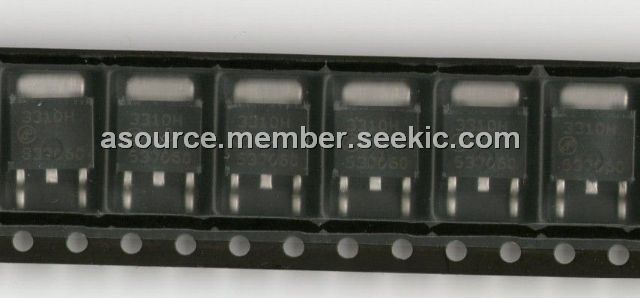

The AP3310GHis an advanced power MOSFET from APEC with simple drive requirement and 2.5v gate drive capability. It provides the designer with the best combination of fast switching, low on-resistance and cost-effectiveness. This device is suited for low voltage and lower power applications. Its drain-source voltage is -20v.

Parametrics

Absolute maximum ratings: (1)VDS, Drain-Source Voltage:-20v; (2)VGS, Gate-Source Voltage:± 12v; (3)ID@TC=25℃, Continuous Drain Current, VGS @ 10V: -10 A; (4)ID@TC=100℃, Continuous Drain Current, VGS @ 10V: -6.2 A; (5)IDM, Pulsed Drain Current: -24A; (6)PD@TC=25℃, Total Power Dissipation:15.6W; (7)TSTG, Storage Temperature Range: -55 to 150℃; (8)TJ, Operating Junction Temperature Range: -55 to 150℃.

Features

Features: (1)Simple Drive Requirement; (2)2.5V Gate Drive Capability; (3)Fast Switching Characteristic.
