Product Summary

The SIR172DP-T1-GE3 is an N-Channel 30-V (D-S) MOSFET. It is suitable for Notebook CPU Core- High-Side Switch.

Parametrics

SIR172DP-T1-GE3 absolute maximum ratings: (1)Drain-Source Voltage:30V; (2)Gate-Source Voltage:± 20V; (3)Operating Junction and Storage Temperature Range: -55 to 150℃; (4)Soldering Recommendations (Peak Temperature):260℃.

Features

SIR172DP-T1-GE3 features: (1)Halogen-free According to IEC 61249-2-21 Definition ; (2)TrenchFET Power MOSFET; (3)Low Thermal Resistance PowerPAK? Package with Low 1.07 mm; (4)Profile; (5)Optimized for High-Side Synchronous Rectifier Operation; (6)100 % Rg and UIS Tested; (7)Compliant to RoHS Directive 2002/95/EC.

Diagrams

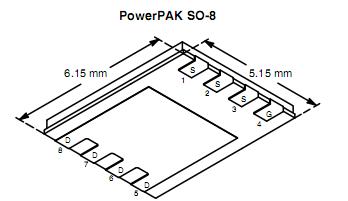

SIR172DP-T1-GE3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

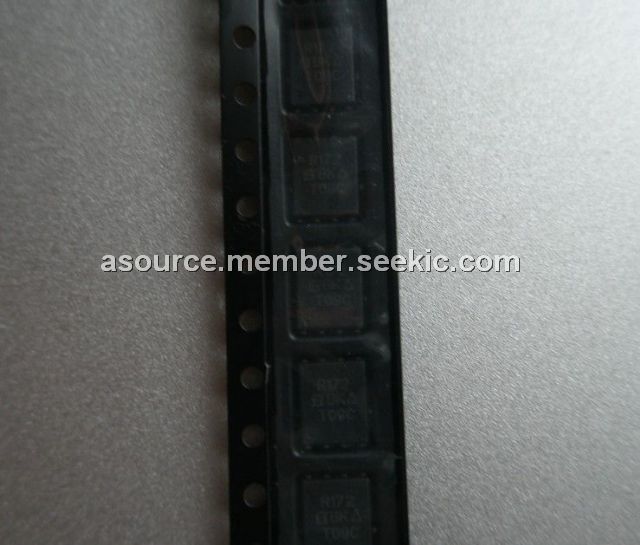

SIR172DP-T1-GE3
SIR172DP-T1-GE3
Vishay/Siliconix
MOSFET 30V 20A 29.8W 8.9mohm @ 10V
Data Sheet
0-1600: $0.22
1600-3000: $0.18
3000-6000: $0.17
6000-12000: $0.16
