Product Summary
The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-252 package is universally preferred for all commercial industrial surface mount applications and suited for low voltage applications such as DC/DC converters. The through-hole version (AP72T02GH) is available for low-profile applications.
Parametrics
Absolute maximum ratings:(1)Drain-Source Voltage, VDS: 25V ; (2)Gate-Source Voltage, VGS: ±20V ; (3)Continuous Collector Current,VGS @ 10V, ID @TC = 25°C: 62A ; (4)Continuous Collector Current,VGS @ 10V, ID @TC = 100°C: 44A ; (5)Pulsed Collector Current, IDM: 190A ; (6)Total Power Dissipation, PD @TC = 25°C: 60W ; (7)Linear Derating Factor: 0.4W/℃ ; (8)Single Pulse Avalanche Energy, EAS: 29mJ ; (9)Avalanche Current, IAR: 24A ; (10)Operating Junction Temperature Range, TJ:-55 to + 175°C ; (11)Storage Temperature Range, TSTG: -55 to + 175°C.
Features
Features:(1)Simple Drive Requirement; (2)Low On-resistance; (3)Fast Switching Characteristic.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AP72T02GH |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
AP7201-1010FMG-7 |
Diodes Inc. |
Low Dropout (LDO) Regulators LDO DUAL 1.9V-6.0V 150MA |
Data Sheet |
|
|
||||||||||||
|

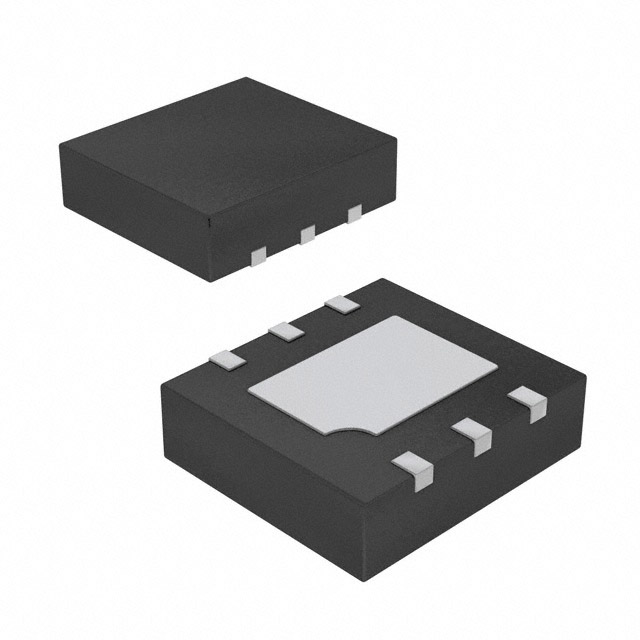

AP7201-1011FMG-7 |
|
