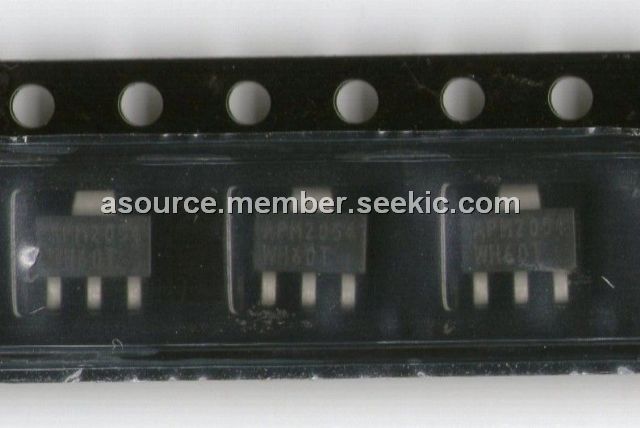

Product Summary
The APM2054NDC-TRL is N-channel enhancement mode MOSFET. This device has a wide application as switching regulators and switching converters. This lead-free product contain molding compounds/die attach materials and 100% matte in plate termination finish; which are fully compliant with RoHS and compatible with both SnPb and lead-free soldiering operations.
Parametrics
Absolute maximum ratings:(1)Drain-Source Voltage, VDSS: 20V; (2)Gate-Source Voltage, VGSS: ±16V; (3)Continuous Drain Current, VGS=10V, ID: 5; (4)Pulsed Drain Current, IDM, VGS=10V: 20A; (5)Diode Continuous Forward Current, IS: 3A; (6)Maximum Junction Temperature, TJ: 150°C; (7)Storage Temperature Range, TSTG: -55 to 150°C; (8)Power Dissipation for Single Operation, PD, TA=25°C: 1.47W; (9)Power Dissipation for Single Operation, PD, TA=100°C: 0.58W; (10)Thermal Resistance-Junction to Ambient, RθJA: 85°C/W.
Features

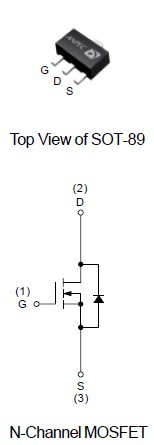

Features:(1)20V/5A; (2)RDS(ON)=35mΩ(typ.) @ VGS=10V; (3)RDS(ON)=45mΩ(typ.) @ VGS=4.5V; (4)RDS(ON)=110mΩ(typ.) @ VGS=2.5V; (5)Super High Dense Cell Design; (6)Reliable and Rugged; (7)Lead Free Available (RoHS Compliant).
