Product Summary

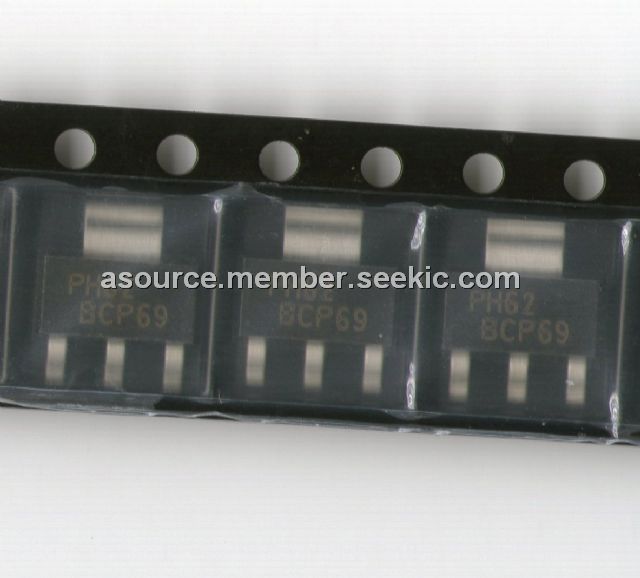

The BCP69 is a 20 V, 1 A PNP medium power transistor in a SOT223 plastic package. It is characterized by high current, three current gain selections, 1.4 w total power dissipation, medium power smd plastic package. This device is widely applied in linear voltage regulators, high-side switches, supply line switches, mosfet drivers, audio preamplifier, etc.

Parametrics

Absolute maximum ratings: (1)VCBO, collector-base voltage open emitter: - -32 V max; (2)VCEO, collector-emitter voltage open base: - -20 V max; (3)VEBO, emitter-base voltage open collector:-5 V max; (4)IC, collector current (DC): -1 A max; (5)ICM, peak collector current: -2 A max; (6)IBM, peak base current: -200 mA max; (7)Ptot, total power dissipation Tamb ≤ 25 °C; note 1: 1.35 W max; (8)Tstg, storage temperature: -65 to +150 °C; (9)Tj, junction temperature: 150 °C max; (10)Tamb, operating ambient temperature: -65 to +150 °C.

Features

Features: (1)High current (max. 1 A); (2)Low voltage (max. 20 V).

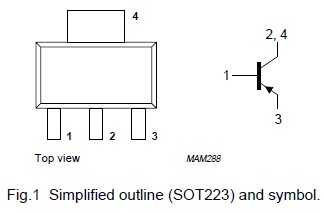

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BCP69
BCP69

Fairchild Semiconductor

Transistors Bipolar (BJT) SOT-223 PNP GP AMP

Data Sheet

0-1: $0.17
1-25: $0.15
25-100: $0.13
100-250: $0.09
BCP69 /T3
BCP69 /T3

NXP Semiconductors

Transistors Bipolar (BJT) TRANS MED PWR TAPE13

Data Sheet

Negotiable
BCP69,115
BCP69,115

NXP Semiconductors

Transistors Bipolar (BJT) PNP 20V 1A

Data Sheet

0-1: $0.19
1-25: $0.15
25-100: $0.11
100-250: $0.08
BCP69,135
BCP69,135

NXP Semiconductors

Transistors Bipolar (BJT) TRANS MED PWR TAPE13

Data Sheet

0-1: $0.07
1-100: $0.06
100-250: $0.06
250-500: $0.06
BCP69_Q
BCP69_Q

Fairchild Semiconductor

Transistors Bipolar (BJT) SOT-223 PNP GP AMP

Data Sheet

Negotiable
BCP6910TA
BCP6910TA

Diodes Inc. / Zetex

Transistors Bipolar (BJT) -

Data Sheet

Negotiable
BCP6910TC
BCP6910TC

Diodes Inc. / Zetex

Transistors Bipolar (BJT) -

Data Sheet

Negotiable
BCP69-16 T/R
BCP69-16 T/R

NXP Semiconductors

Transistors Bipolar (BJT) TRANS MED PWR TAPE-7

Data Sheet

Negotiable
