Product Summary
The AZC099-04S is a high performance and low cost design which includes surge rated diode arrays to protect high speed data interfaces. The applications of the AZC099-04S are Video Graphics Cards, USB2.0 Power and Data lines protection, Notebook and PC Computers, Monitors and Flat Panel Displays, IEEE 1394 Firewire Ports, SIM ports.
Parametrics
AZC099-04S absolute maximum ratings: (1)Peak Pulse Current (tp =8/20μs): 5.5A ; (2)Operating Supply Voltage (VDD-GND): 6V ; (3)ESD per IEC 61000-4-2 (Air): 15kV; (4)ESD per IEC 61000-4-2 (Contact): 8kV; (5)Lead Soldering Temperature:260℃ (10 sec.); (6)Operating Temperature:-55 to +85℃; (7)Storage Temperature:-55 to +150℃; (8)DC Voltage at any I/O pin:(GND – 0.5) to (VDD + 0.5)V.
Features
AZC099-04S features: (1)For low operating voltage applications: 5V, 4.2V, 3.3V, 2.5V; (2)Low capacitance : 1.0pF typical; (3)Fast turn-on and Low clamping voltage; (4)Array of surge rated diodes with internal equivalent TVS diode; (5)Small package saves board space; (6)Solid-state silicon-avalanche and active circuit triggering technology.

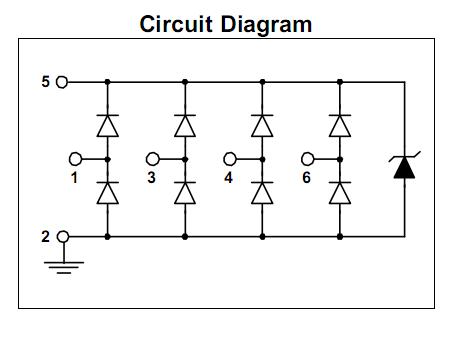

Diagrams
